Wade's Cobra Build!

July, 2000

Note:   All of the small images are linked to full-size images.  To view an image in full size, just click on the small image.  To return to this page, use your 'Back' button on your browser.

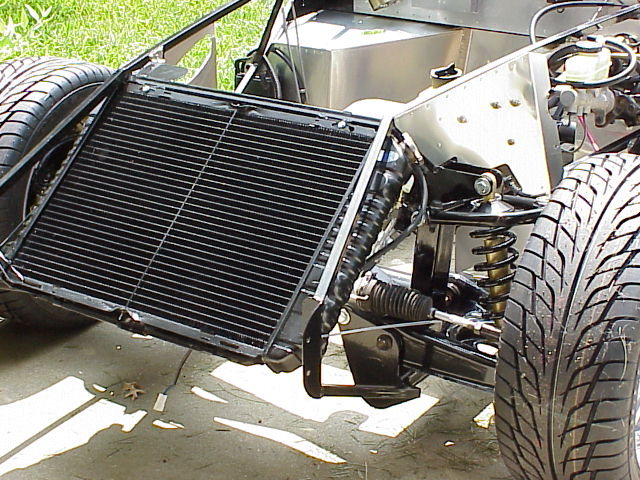

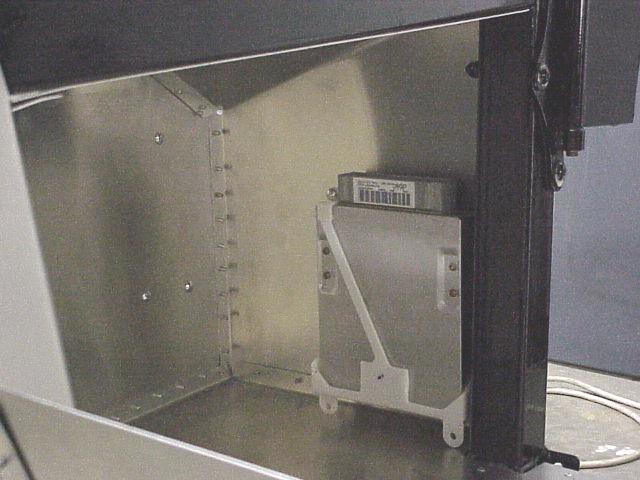

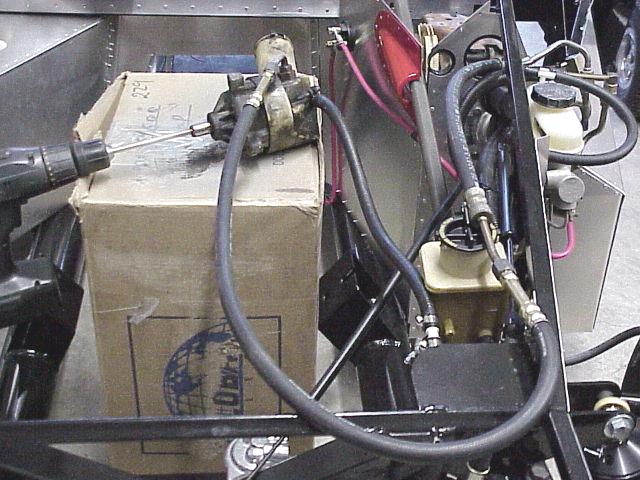

July 4-6, 2000 - Finding things to do until I get the engine and wiring harness to install, I turned my attention to the radiator assembly.  The first step was to attach the electric fan to the donor shroud, then attach the shroud to the new radiator.  The trial fitting showed that the power steering lines were running right where the radiator and fan shroud have to be.   This meant I had to 'customize' the stock metal lines running from the power steering rack.  I finally got everything to fit, but it is very close.  I used the donor power steering pump and a drill to set up a test of the hydraulic systems.   Finally, I mounted the engine control computer inside the passenger footbox.

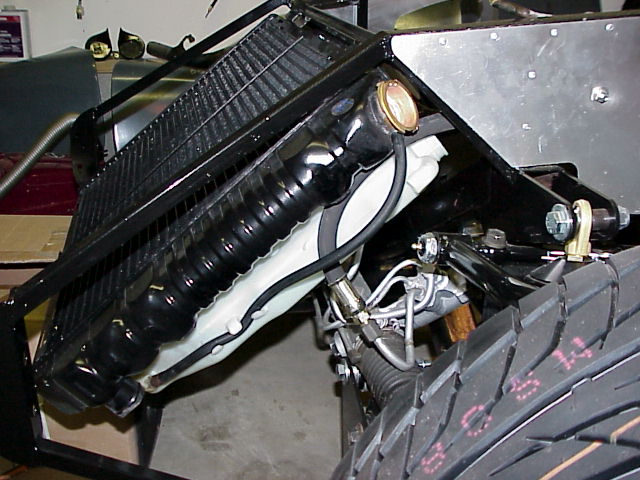

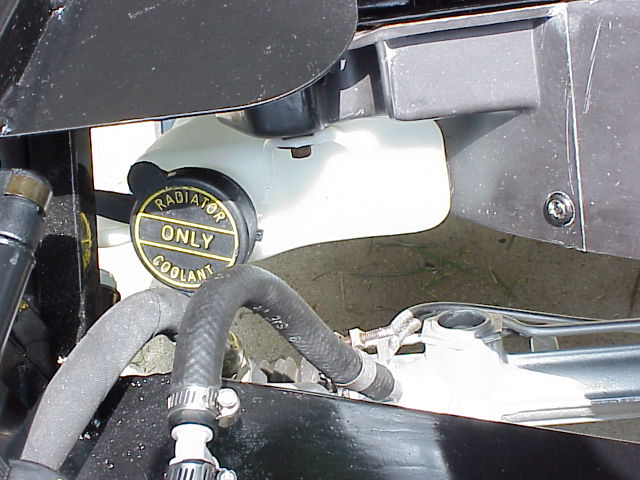

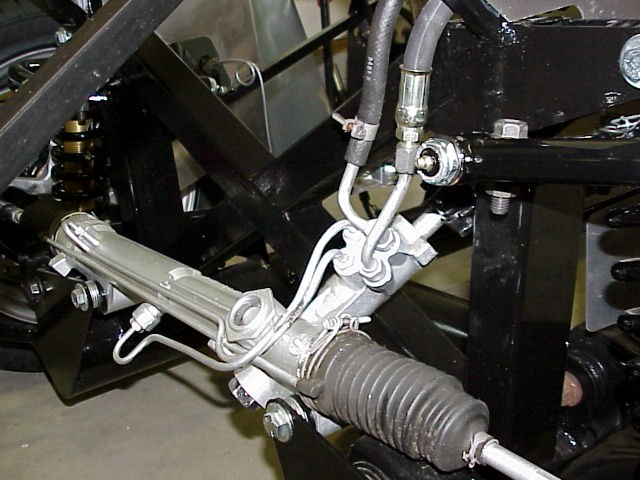

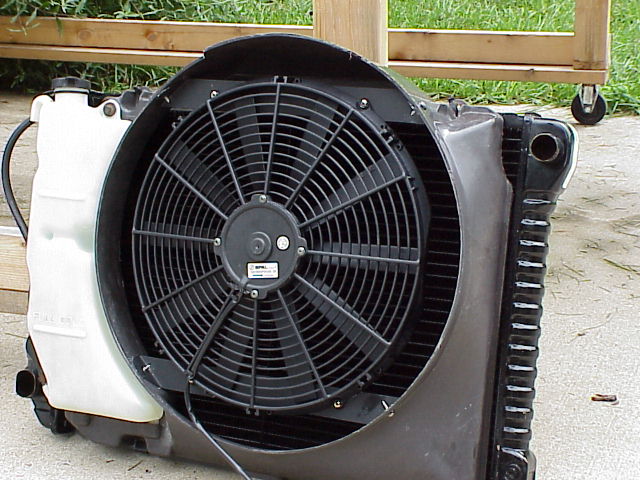

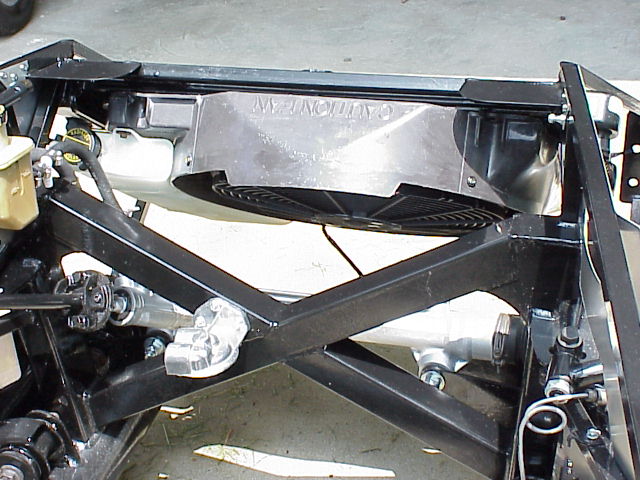

RadFanAssm.jpg.JPG (83964 bytes)  RadTestFit.jpg.JPG (74515 bytes)  PSLines,jpg.JPG (65575 bytes)  RadTestFit2.jpg.JPG (76665 bytes)  RadTestFit3.jpg.JPG (110411 bytes)  RadCloseFit.jpg.JPG (67160 bytes)  PS-PB-Test.JPG (81224 bytes)  ComputerIn.JPG (55412 bytes)



July 14-16, 2000 - Its alive, ITS ALIVE!  The wiring harnesses arrived from Rob Weatherbie on Thursday, and the engine was delivered by Tom Stewart on Saturday.  My friend Scott Williamson drove up from Virginia Beach; and with his help, and that of Tom Stewart installing the engine, FFR #2084K went on its maiden voyage on Sunday morning.  For a short video click here, or for a longer (1.5 meg) video, click here

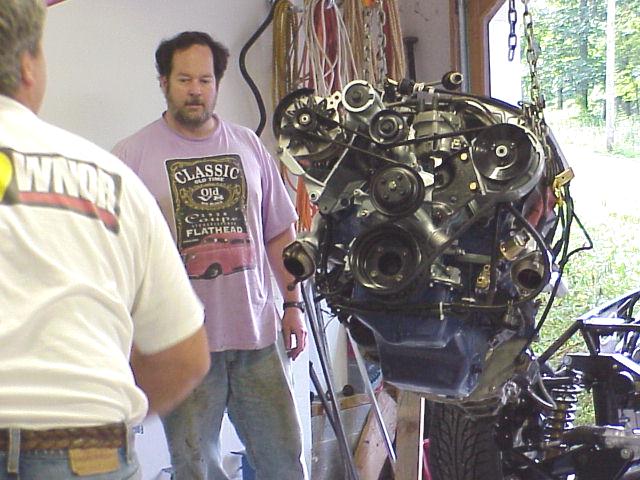

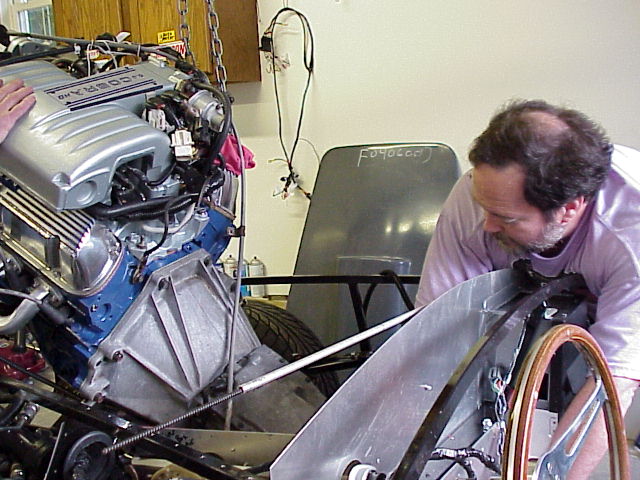

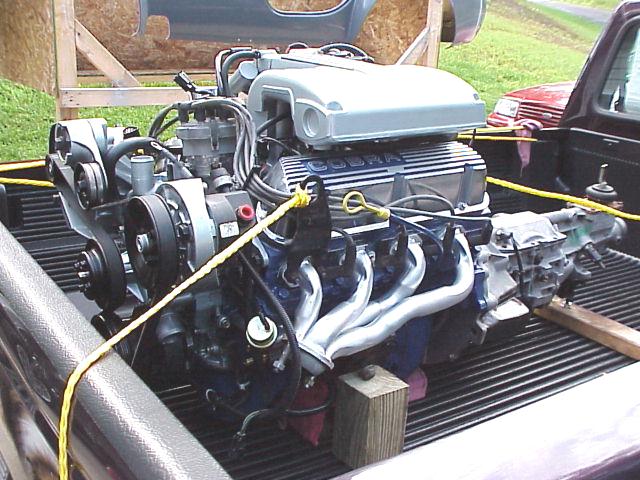

The pictures below show several of the events, including the arrival of the engine, the installation, and the process of connecting all of the zillions of wires and hoses associated with an EFI engine.   With the addition of the heater, power steering, and power brakes, there were several extra hook-ups to deal with.  As you can see from the pictures, I have my work cut out for me in re-routing the under-hood stuff to make the engine compartment look neat.

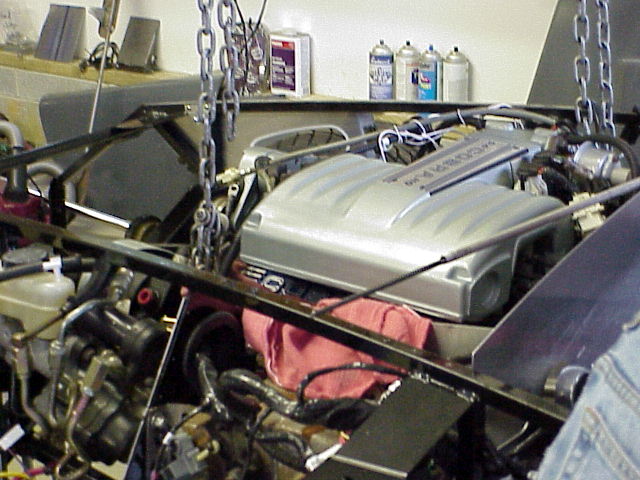

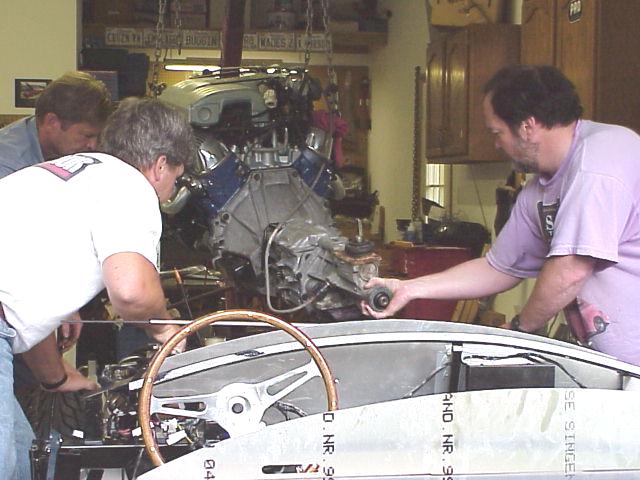

Engineintruck.jpg (90190 bytes)   MRTune.jpg (98028 bytes)  Engineonhoist.jpg (75384 bytes)   Engineinstall.jpg (65996 bytes)  Engineinstall2.jpg (82913 bytes)  Engineinstall4.jpg (74773 bytes)  EngineandScott.jpg (97286 bytes)  GoKart.jpg (50457 bytes)



July 17, 2000 - So there I was, in the garage minding my own business when I was attacked by two West Virginia Mountain Snakes!  Steve Shaffer stopped by with his newly completed FFR #1825K.  Shortly after, Bob Wells pulled up in his Classic.
